Description

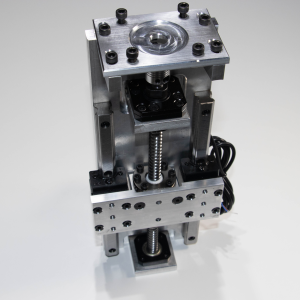

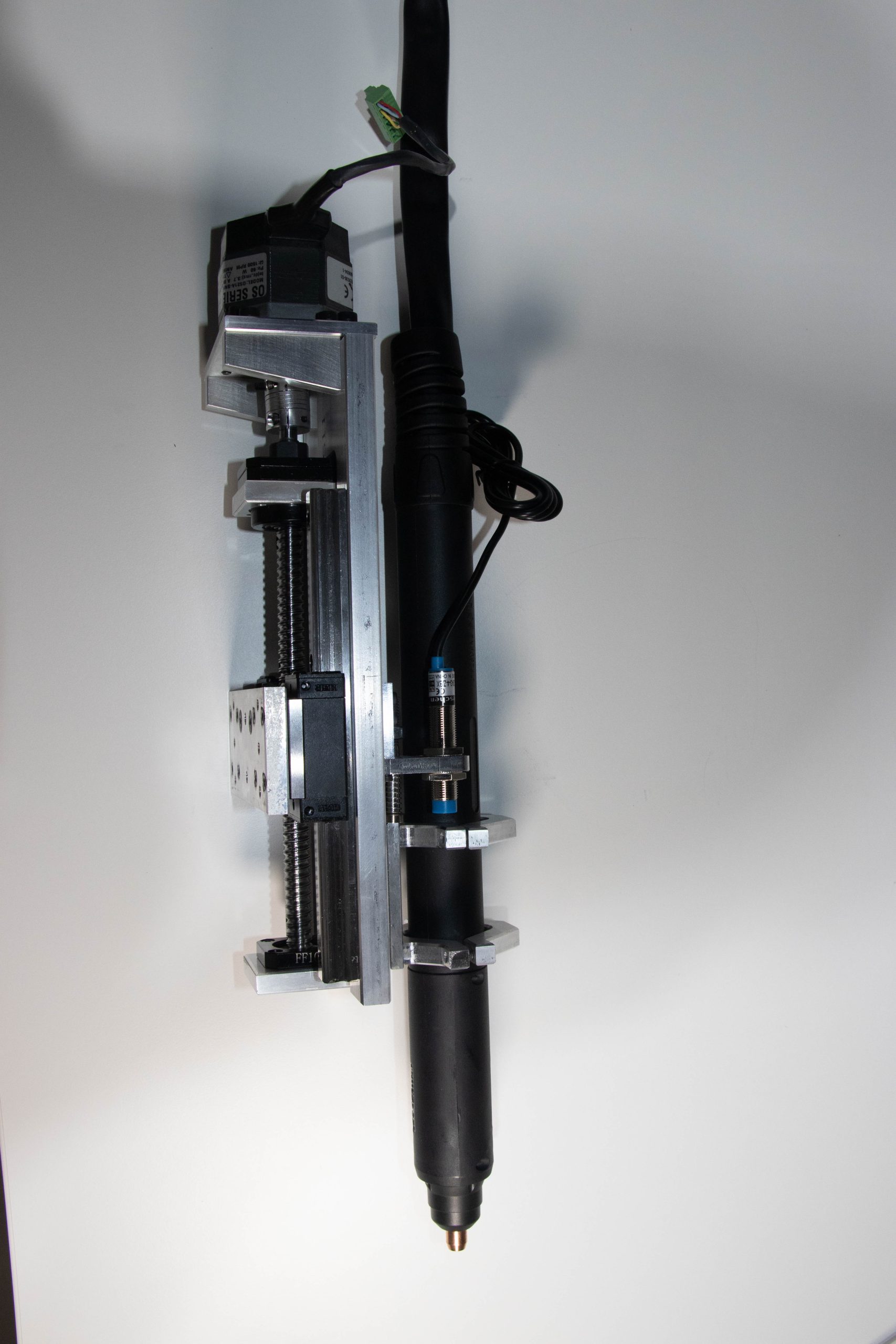

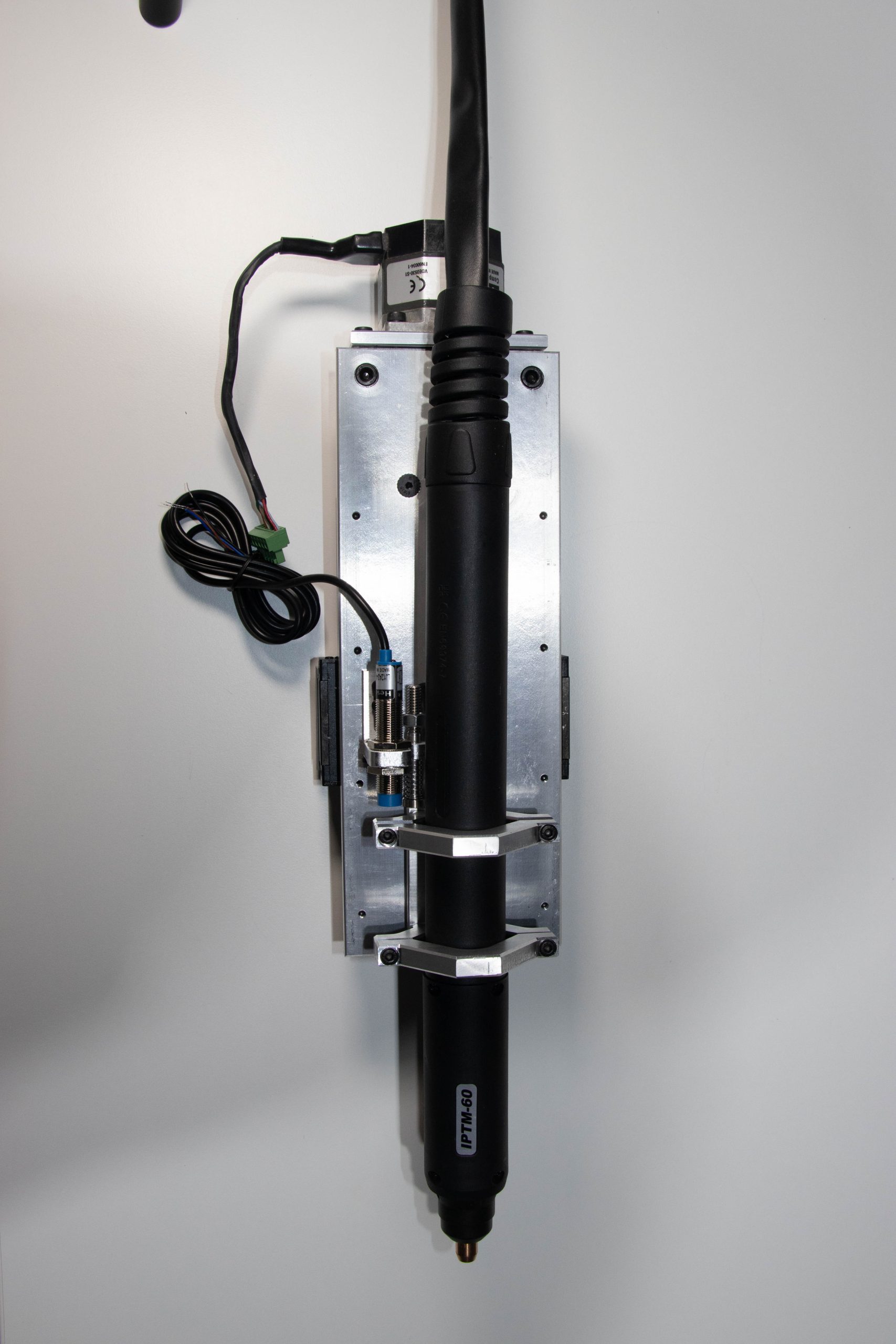

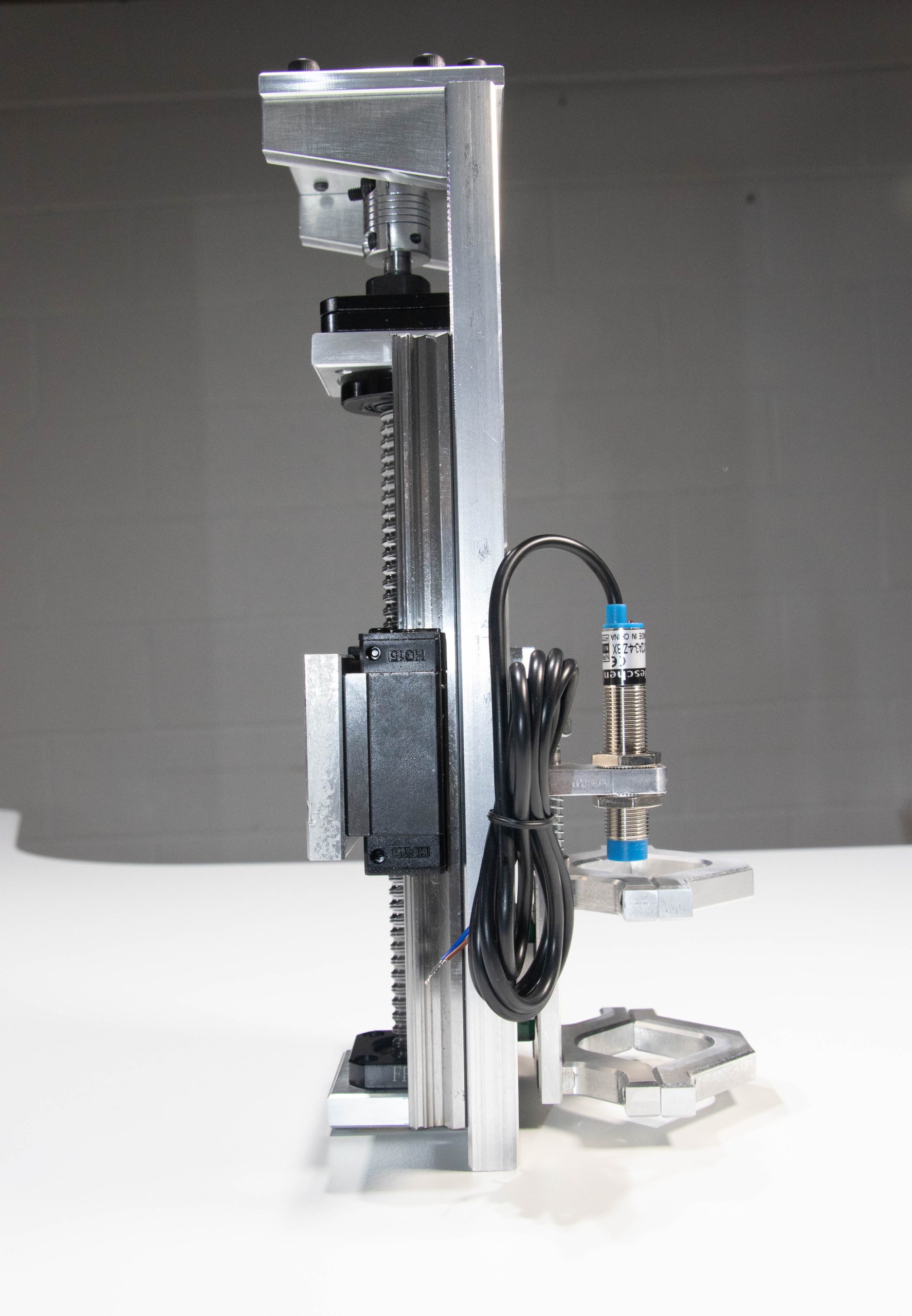

CNC Z-Axis Plasma Torch Assembly,
Please note the torch, stepper motor and motor coupler not included.

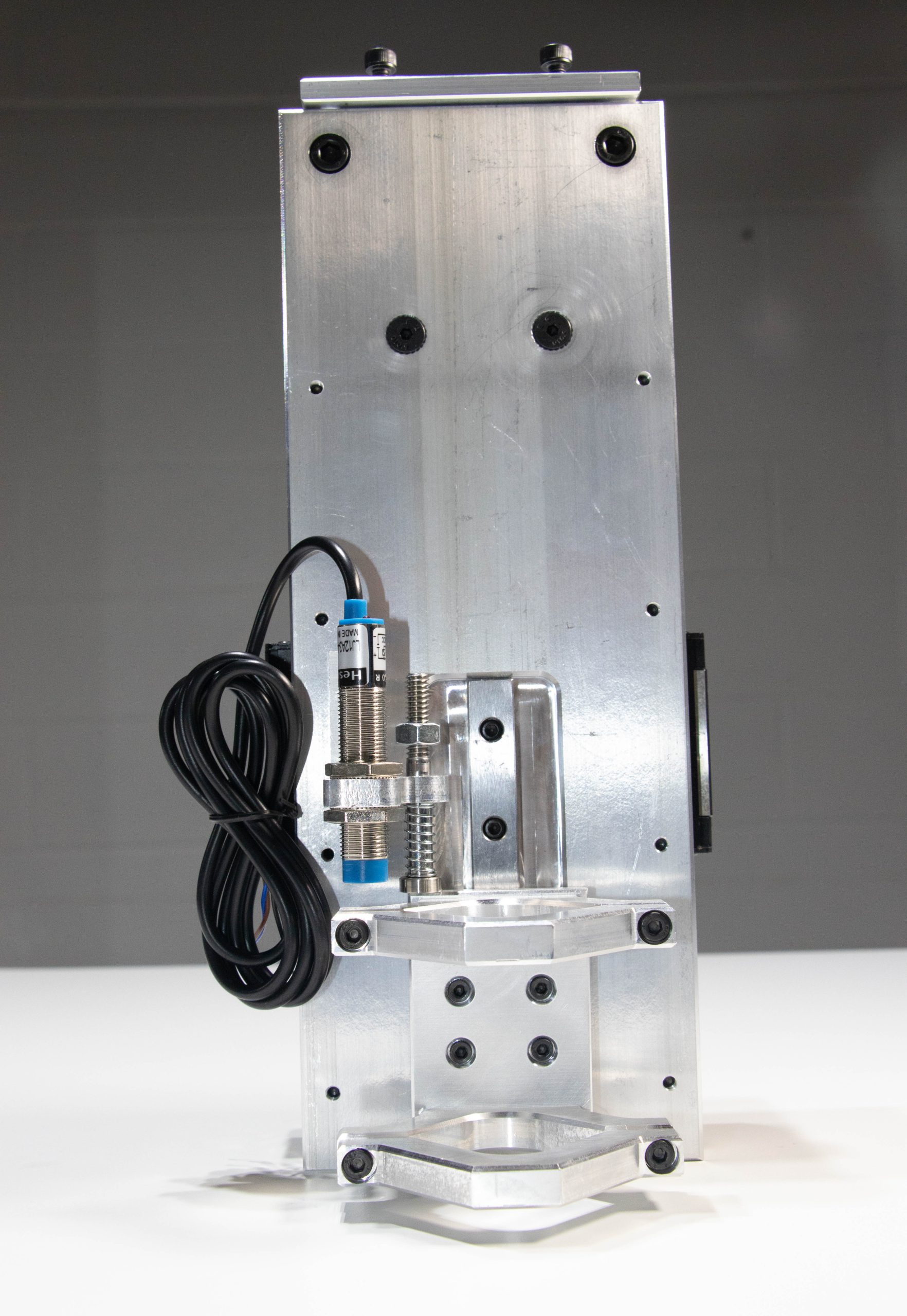

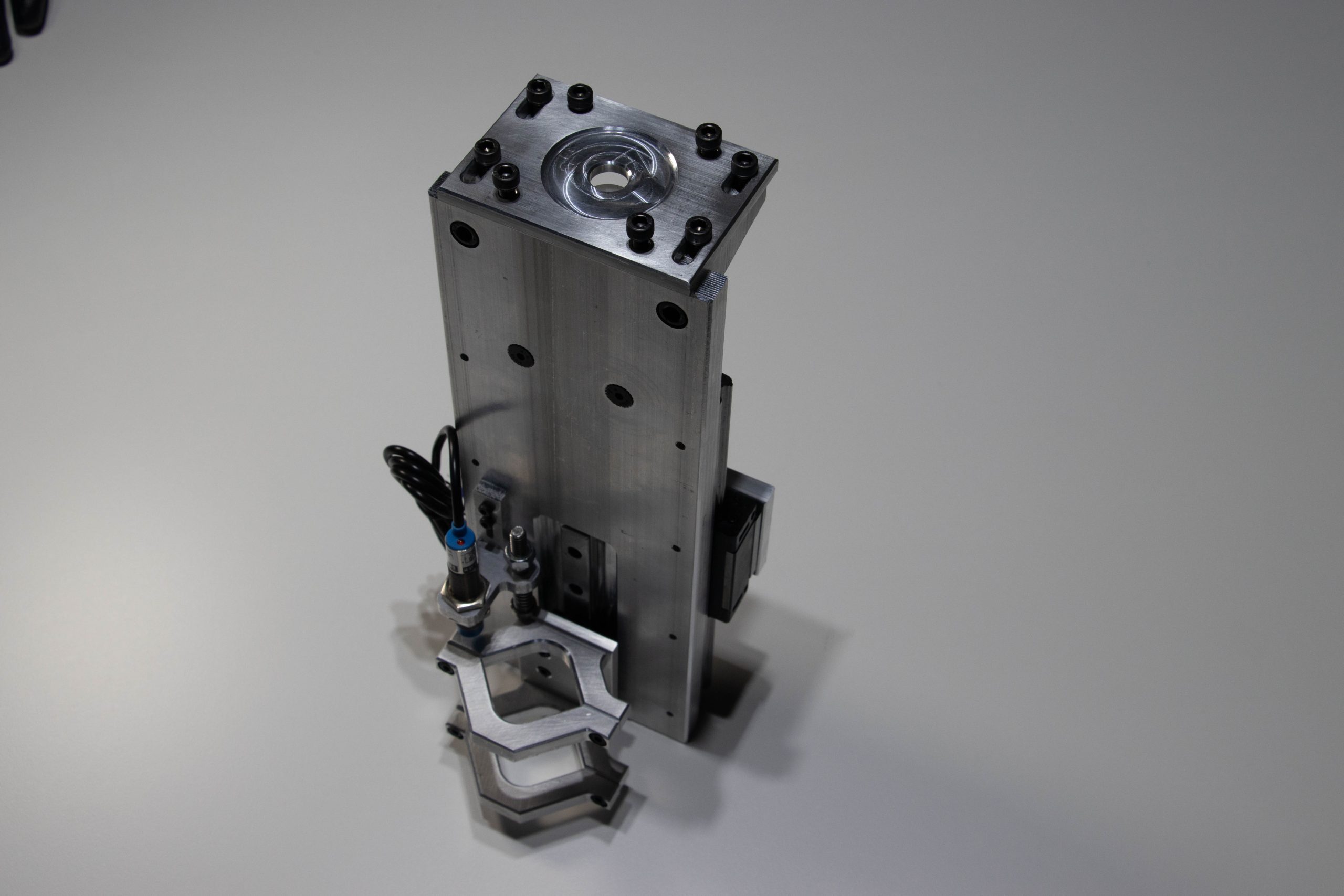

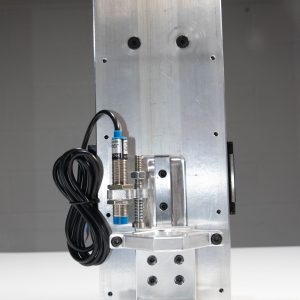

The proxy sensor is included.

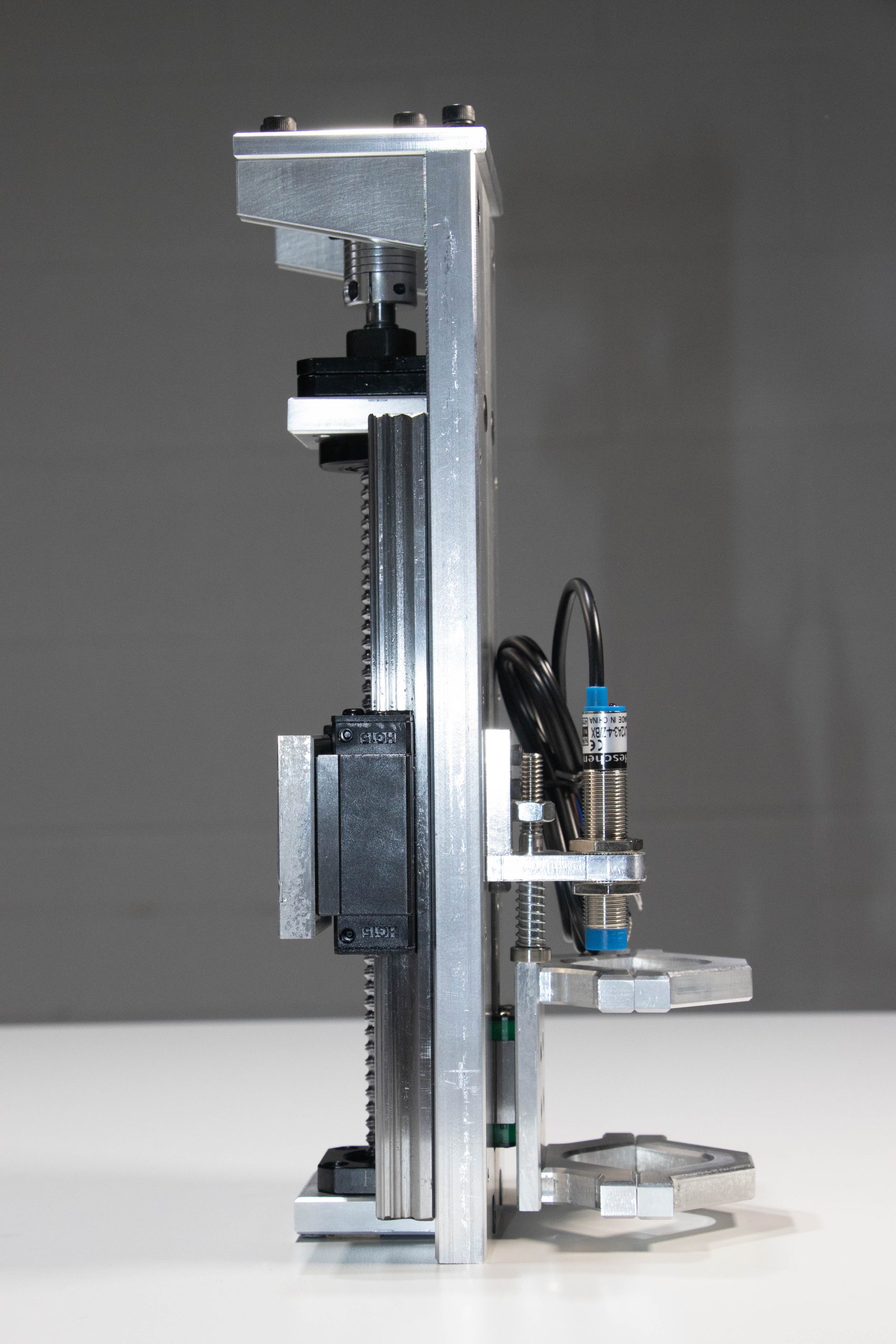

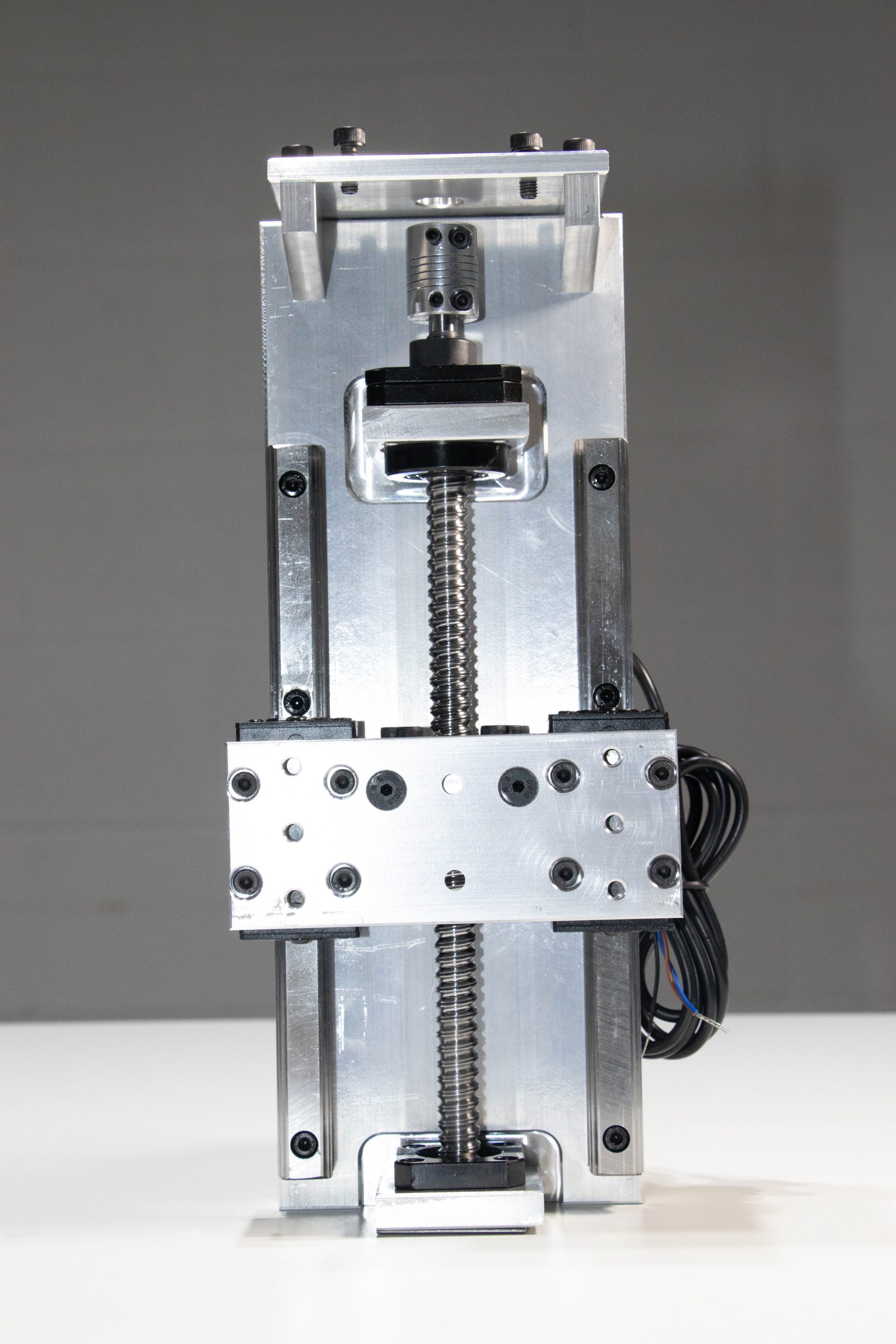

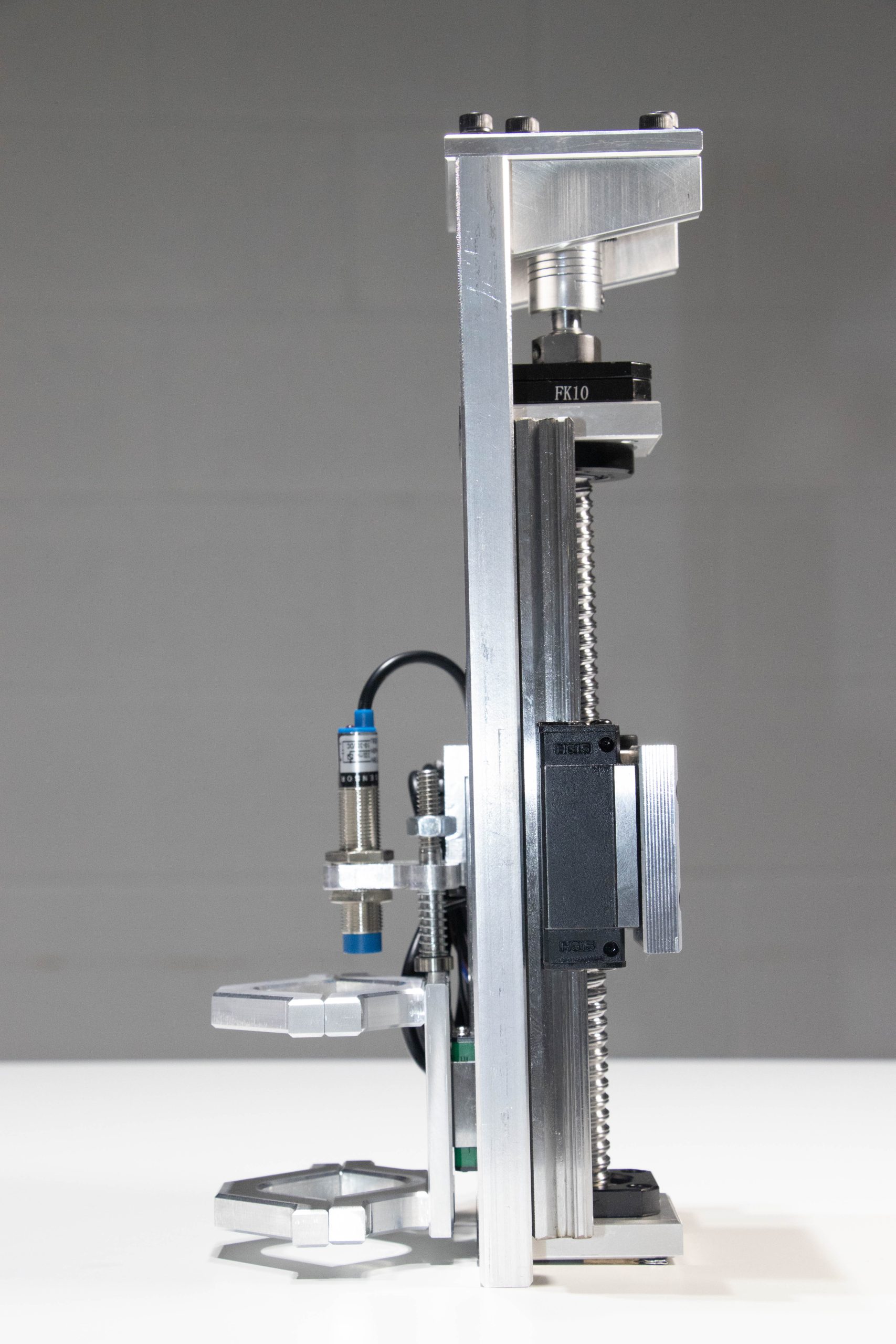

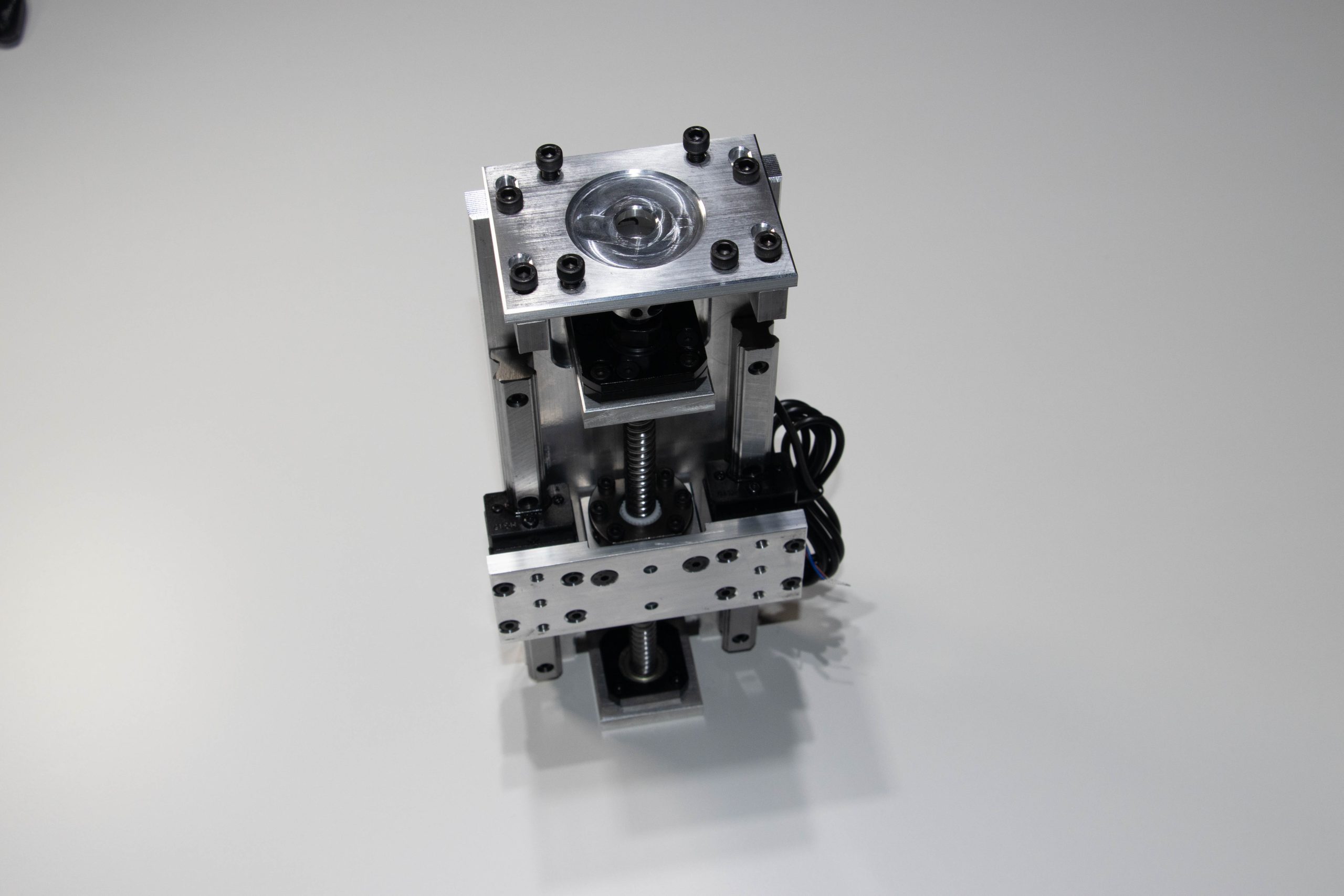

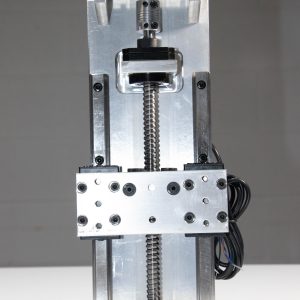

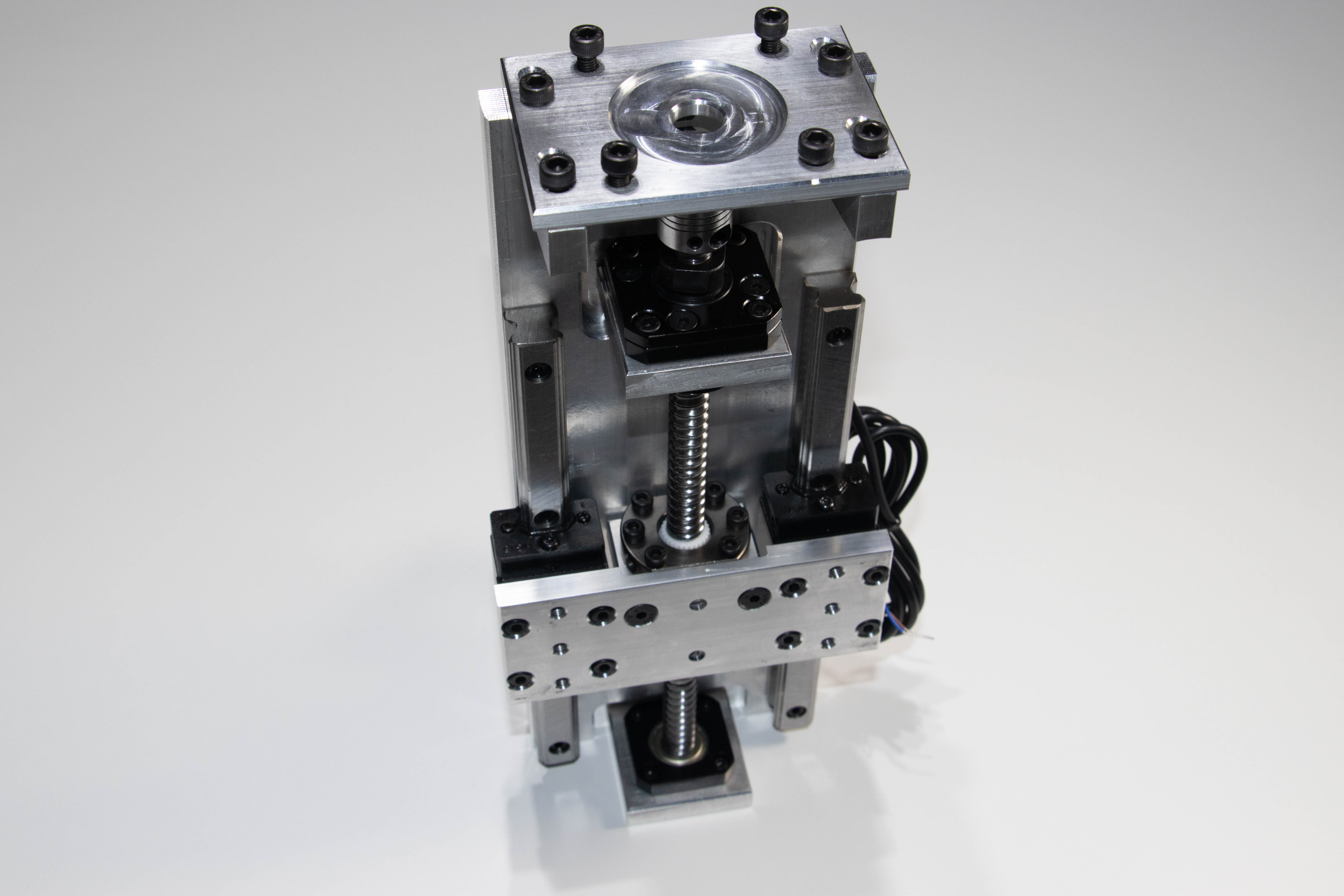

The assembly uses a SFU1204 standard ballscrew and HGR15 linear rail. All moving parts are industry standard and easily serviceable and replaced if needed. The floating head uses a MGN12 linear rail.
The design is meant for prolonged use, easy to service and replace any parts necessary.

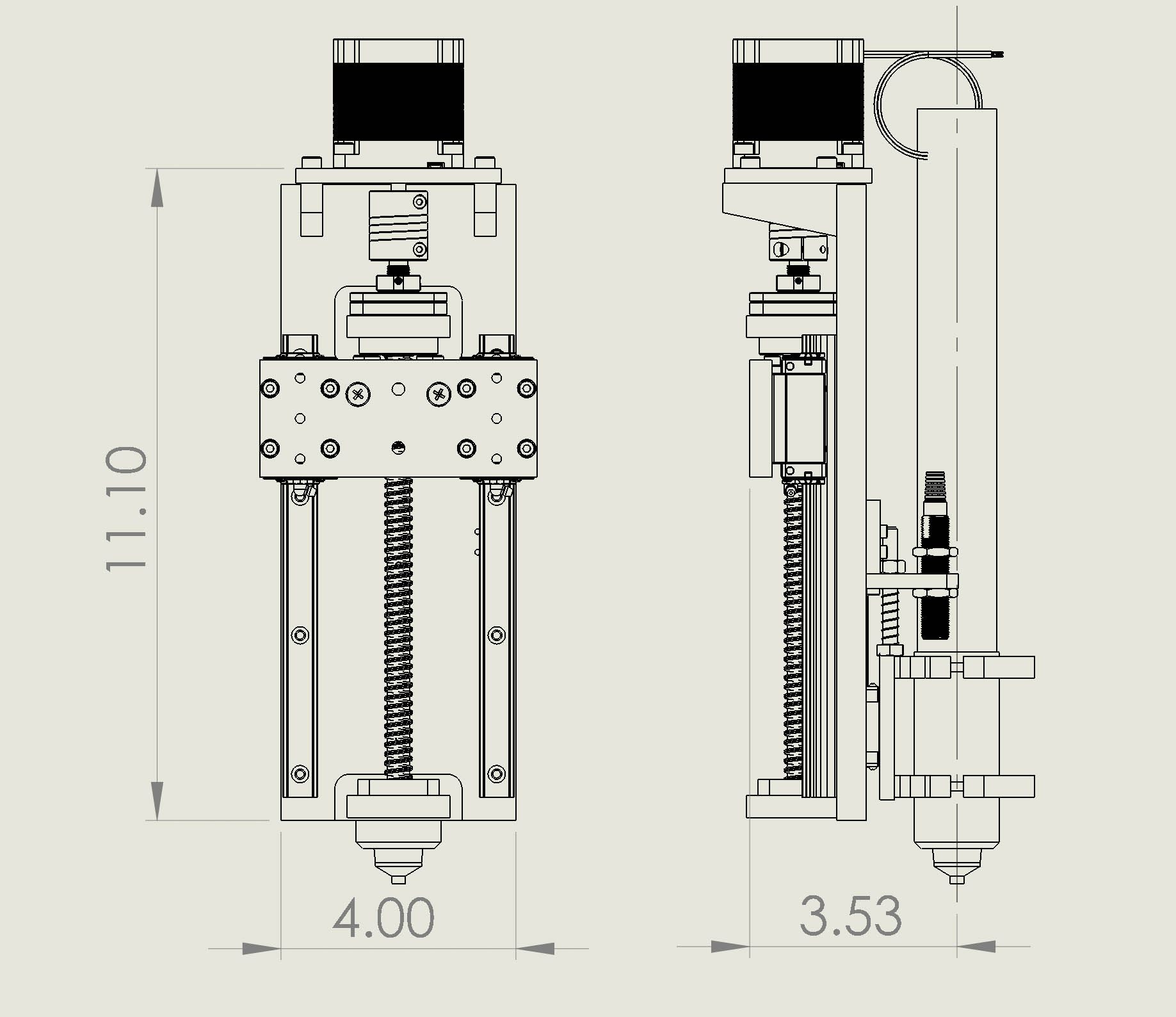

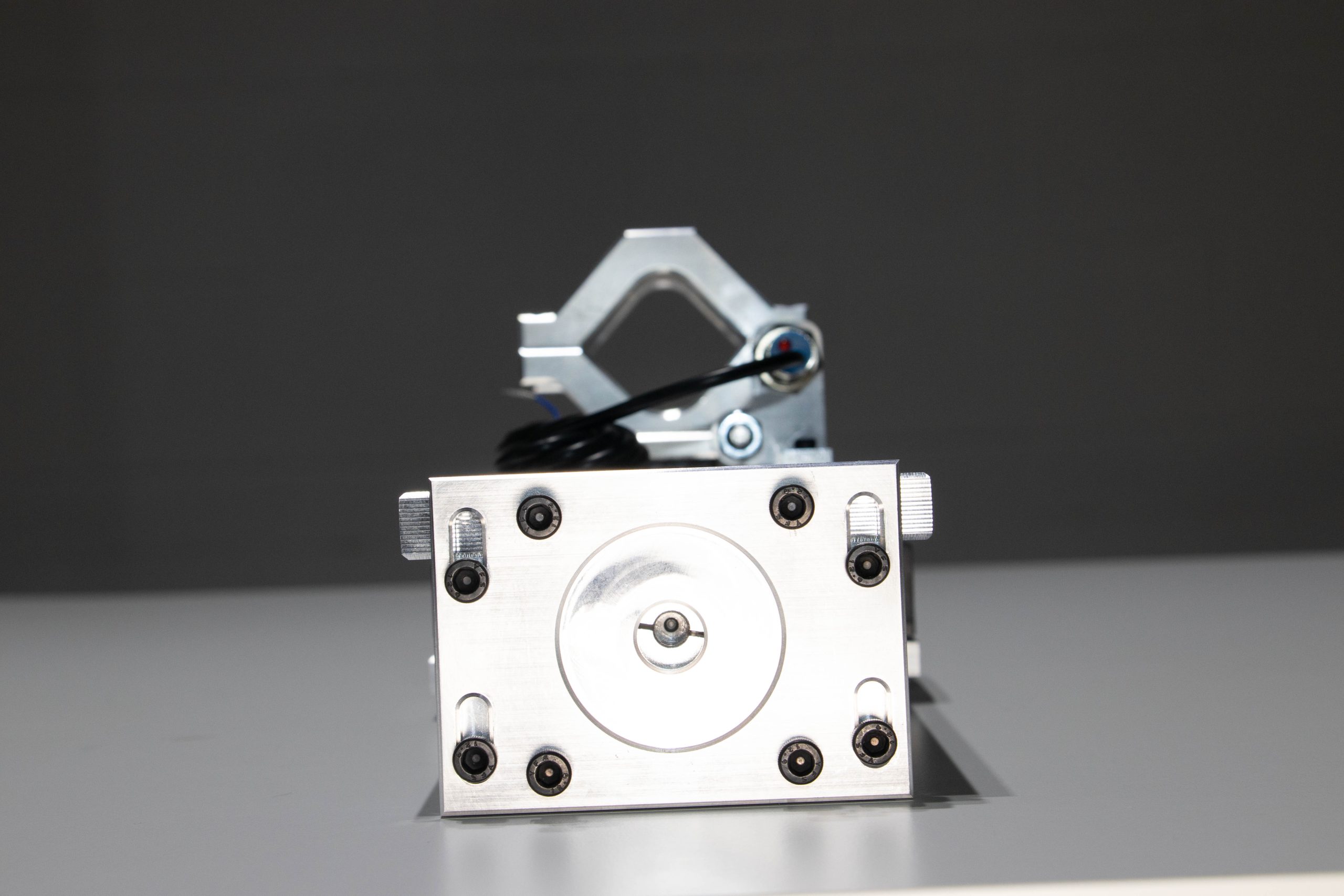

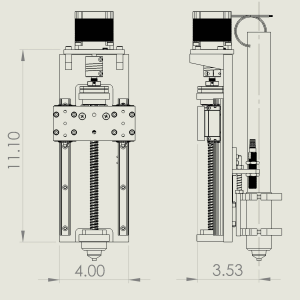

This is a slim design with clever features to keep it compact, and have a short stick out. The center of the torch to the mounting plate is only 3.5 inches. The travel is 5.125 inches.

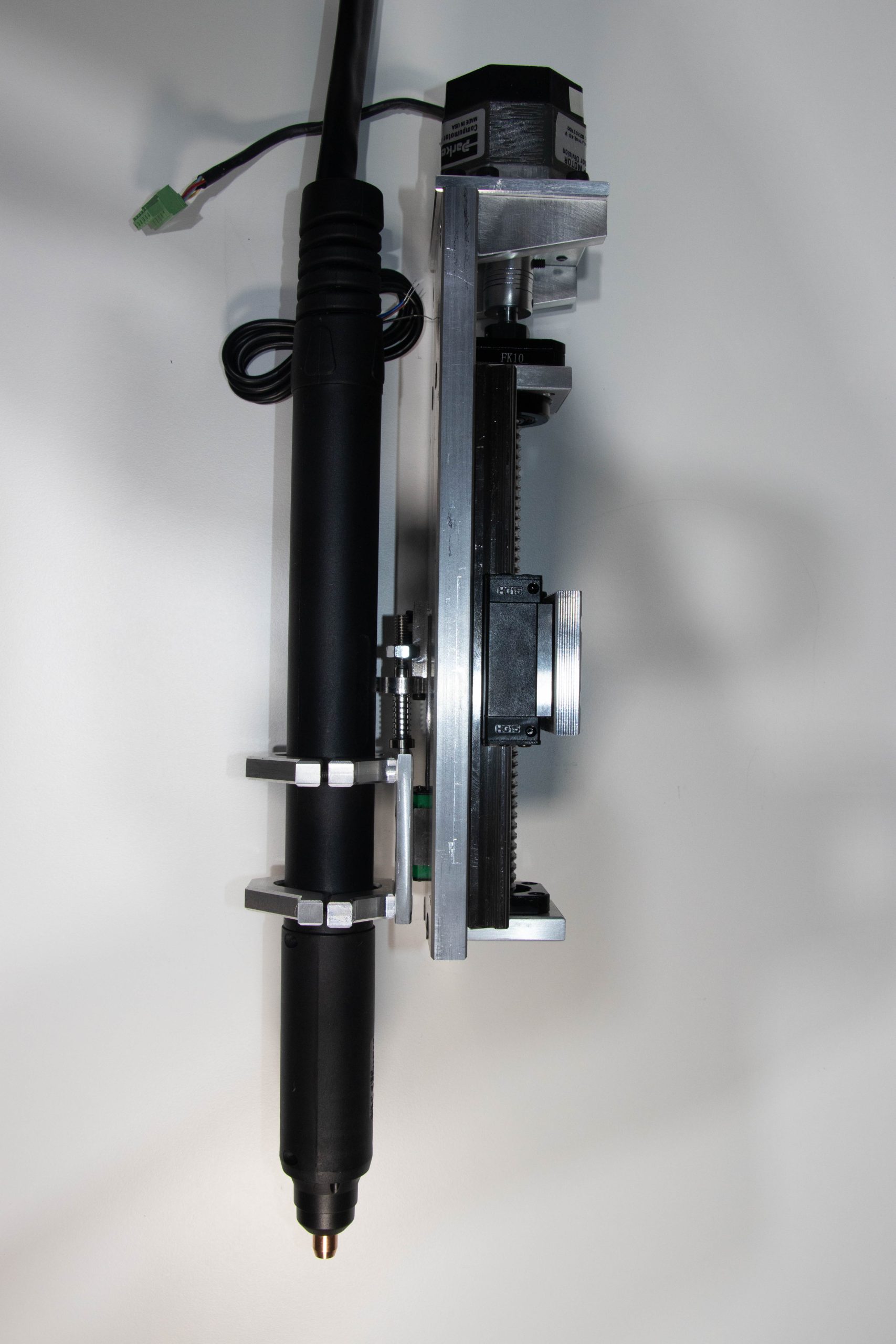

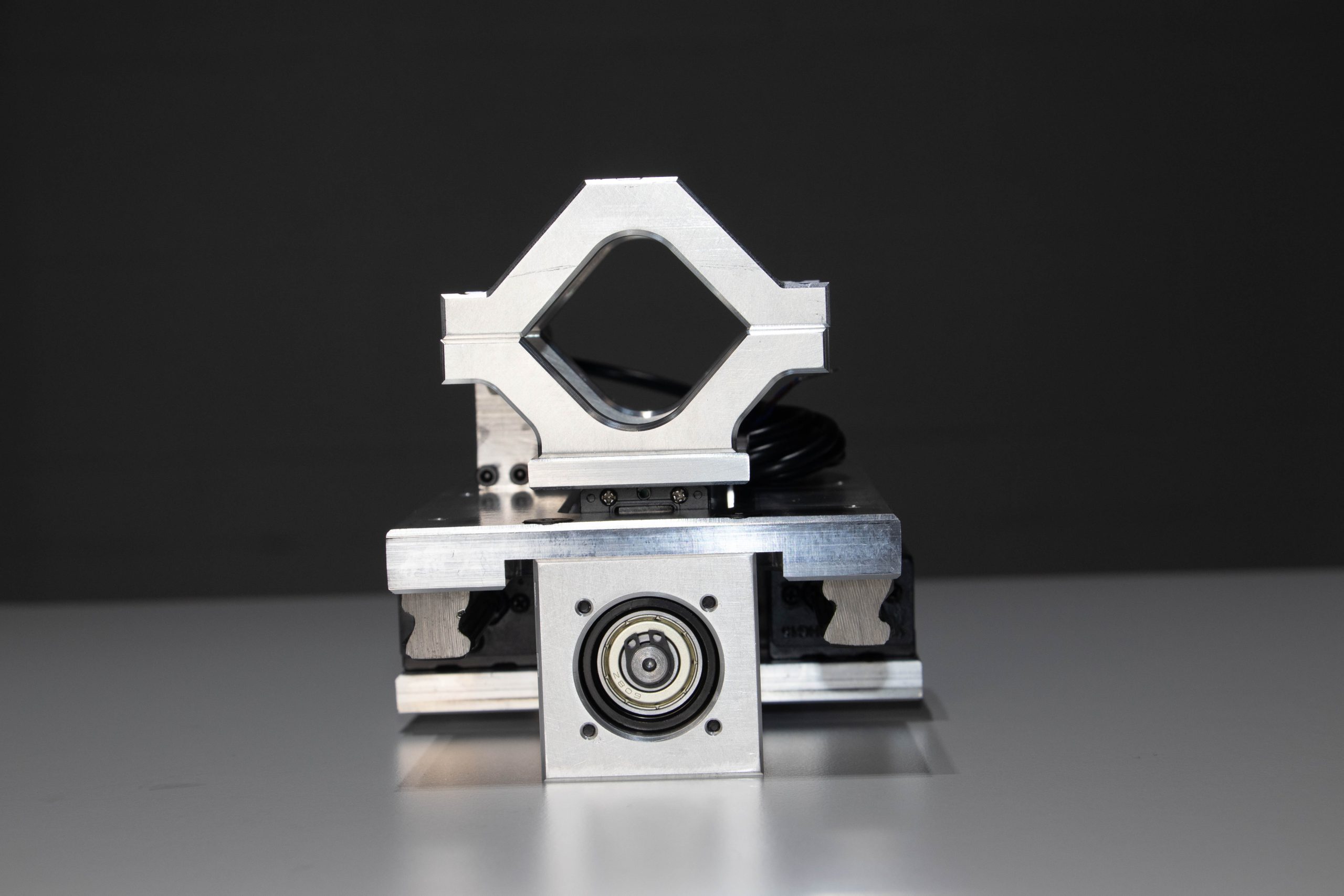

The torch brackets can accommodate various sizes of torches.
Please contact me for additional information. or custom mounting plates.
Click HERE for video description.
